GVision

Configuration

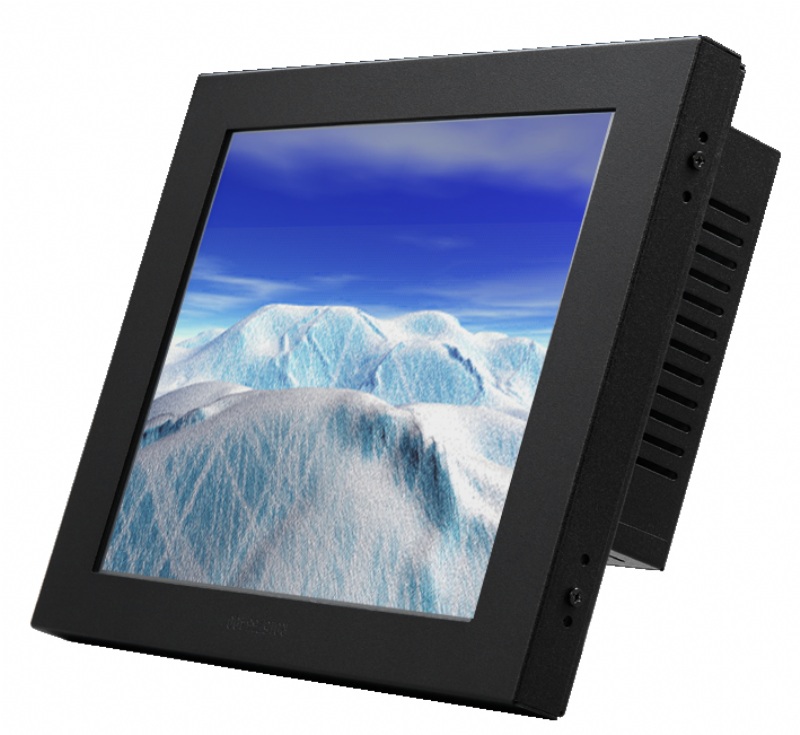

K08AS Series c




PCoIP:



Bezel Color:	Black



LCD Display:	8.4



Max. Resolution:	SVGA 800 x 600



Contrast Ratio:	600:1 (typical)



Brightness:	450 Cd/m2 (typical)



Touch Screen:



Touch Panel:	5-wire Resistive - RS232 or USB A type (option)



Aspect Ratio:



Response Time:	30 ms (Typ.)



Viewing Angle:	160 (H) x 140 (V)



Base:



Input Signals:	Analogue VGA



Audio System:



Power Adaptor:	Universal power adaptorInput AC 100~240V, 50~60Hz; Output DC 12V / 3A



Dimensions (WxHxD):	220.0 x 165.0 x 41.9 mm



Certifications:	C-UL, CE

* Rugged metal chassis offering strong protection

* High contrast color TFT LCD display supports resolution up to 800 x 600

* Compatible with VGA, IBM and VESA signal standards•

(resolution/timing auto-detected)

* Compatible with non-standard signals (on request) •

* Supports DDC 1/2B for Plug & Play compatibility•

* Advanced OSD control for picture quality adjustment•

* Rugged all-metal fully enclosed chassis•

* VESA standard mounting•

* RoHS/WEEE Compliance•

* Anti-Glare / Anti-Reflective tempered glass•

* Sunlight Readable•

* IP54 waterproof & dustproof sealed front bezel•

* Touch sensor technologies: resistive, surface capacitive•

* Video Signal input

- Signal Connector: RCA / S-Video

- NTSC / PAL / SECAM video

K08AS-CA-0010: 8" ; Chassis; open frame; non touch; touch ready; non-branded

K08AS-CA-0520 8" ; Chassis; open frame; GTouch Channel; Resistive; non-branded

K08AS-CA-0530 8" ; Chassis; open frame; e-turbo; Resistive USB; non-branded

K08AS-CA-0620 8" ; Chassis; open frame; GTouch Project; Resistive; non-branded

K08AS-CA-0630 8" ; Chassis; open frame; GTouch Project; Resistive USB; non-branded

To Order:
