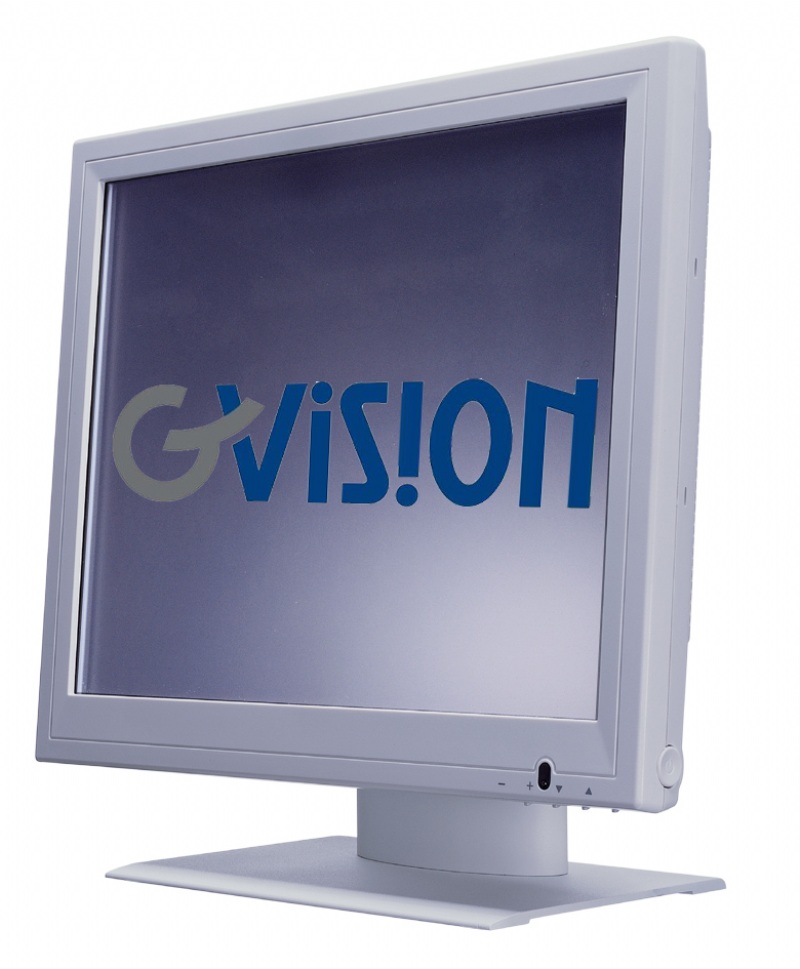

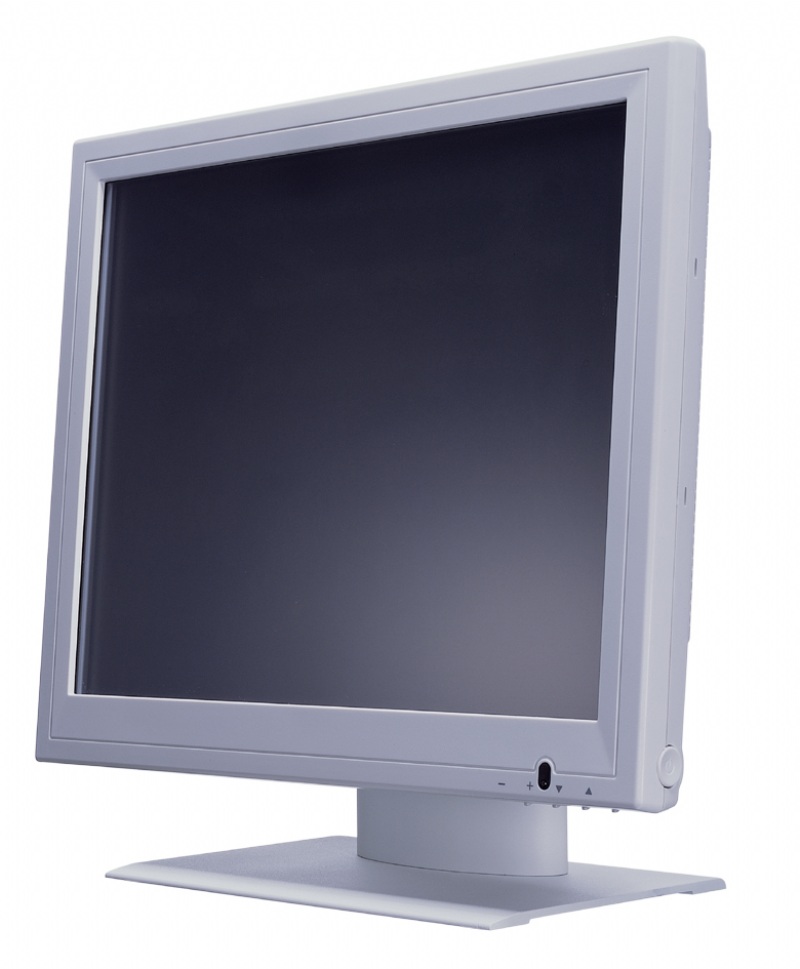

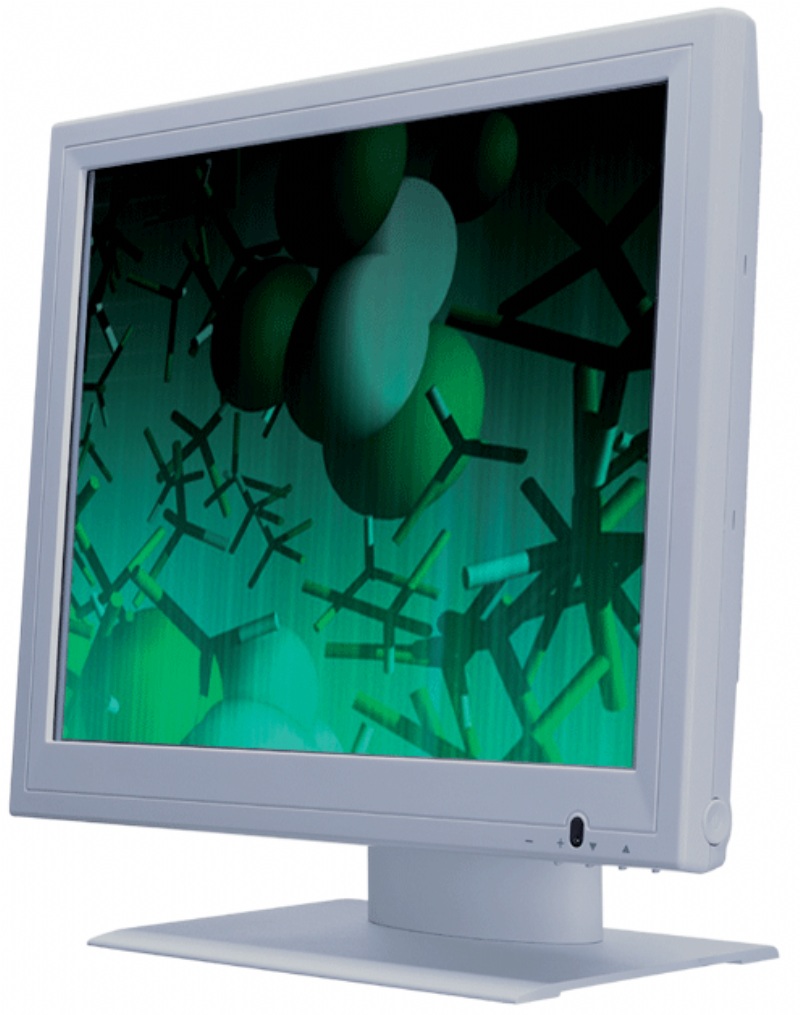

MA15BX Series c




PCoIP:	Optional feature



Bezel Color:	White



LCD Display:	15'' TFT active matrix panel



Max. Resolution:	XGA 1024 x 768



Contrast Ratio:	700:1 (Typical )



Brightness:	250 Cd/m2 (Typical )



Touch Screen:	Resistive/Capacitive (standard)



Touch Panel:	RS-232 or USB (optional)



Aspect Ratio:	4:3



Response Time:	8 ms (Typ.)



Viewing Angle:	140°(H) x 130°(V) (Typ.)



Base:	Tilt down : -5° , Tilt up : +90°



Input Signals:	Analog, Digital



Audio System:	1W / per channel driver



Power Adaptor:	Universal Power Adapter Input AC 100~240V, 50~60 Hz Output DC 12V / 3.3A, 40W



Dimensions (WxHxD):	351.0 x 314.5 x 140.0 mm



Certifications:	CE, FCC, UL60601-1,TUV EN60601-1, UL / c-UL / TUV / CB Other CCC(optional) / RoHS / WEEE

* High contrast color TFT LCD display supports resolution up to 1024 x 768

* Compatible with VGA, IBM and VESA signal standards

(resolution/timing auto-detected)

* Compatible with non-standard signals (on request)

* Supports DDC 1/2B for Plug & Play compatibility

* Advanced OSD control for picture quality adjustment

* Rugged all-metal fully enclosed chassis

* VESA standard mounting

* RoHS/WEEE Compliance

Integrated stereo speakers

* Anti-Glare / Anti-Reflective tempered glass

* Sunlight Readable

* IP54 waterproof & dustproof sealed front bezel

* Touch sensor technologies: resistive, surface capacitive

* Video Signal input

- Signal Connector: RCA / S-Video

- NTSC / PAL / SECAM video

* MA15BX-AA: 15" ; Stand ; Analog

* MA15BX-AB: 15" ; Stand ; Analog + Digital

* MA15BX-AE: 15" ; Stand ; Analog + Digital + Video-In

To Order:
