GVision

Configuration

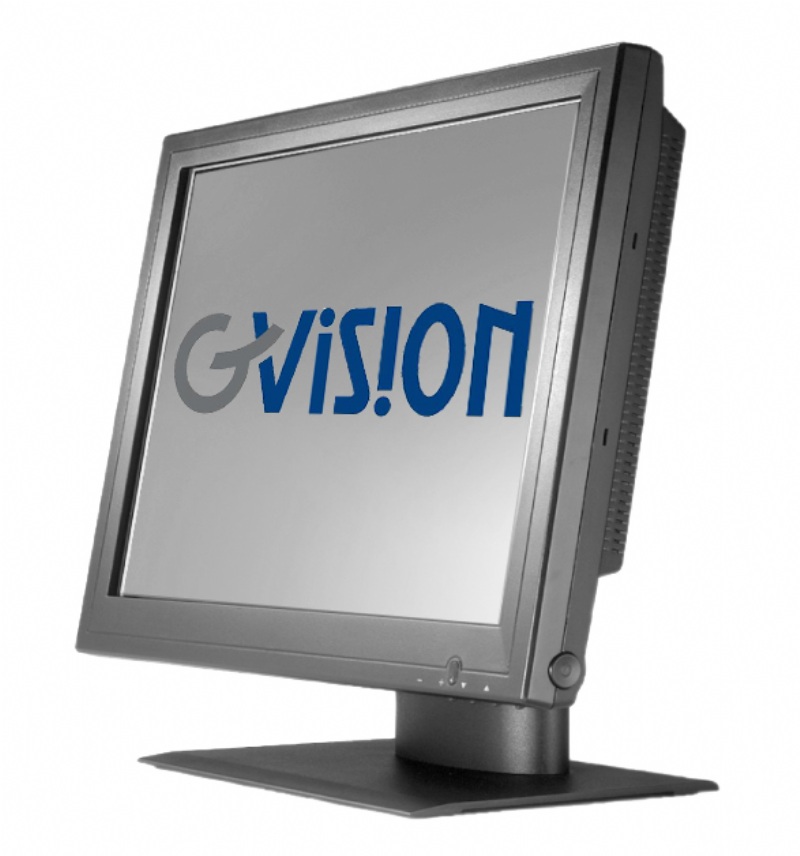

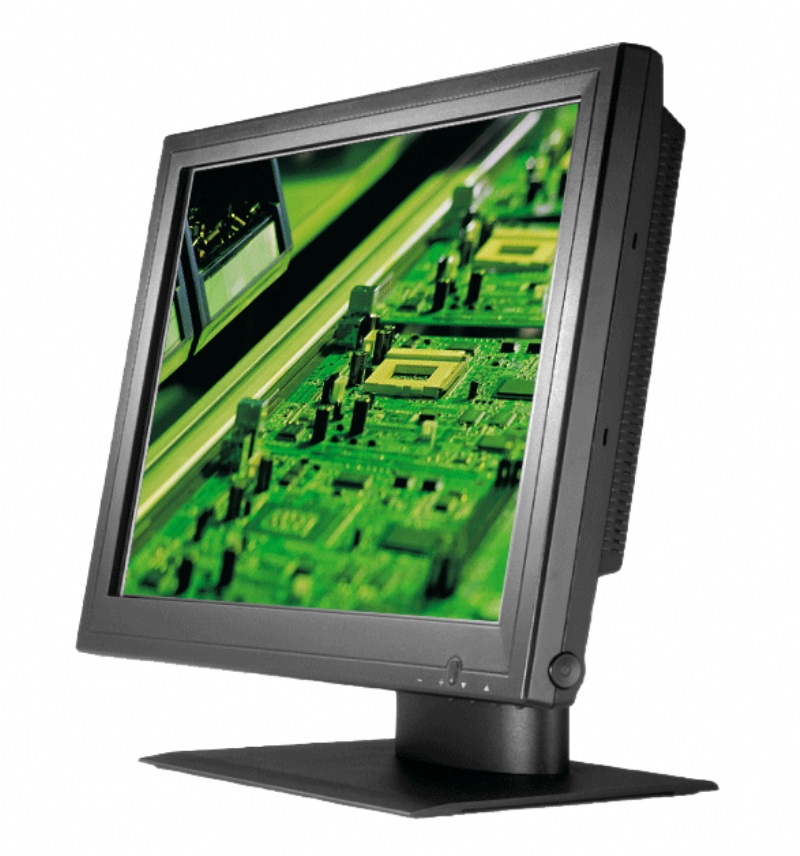

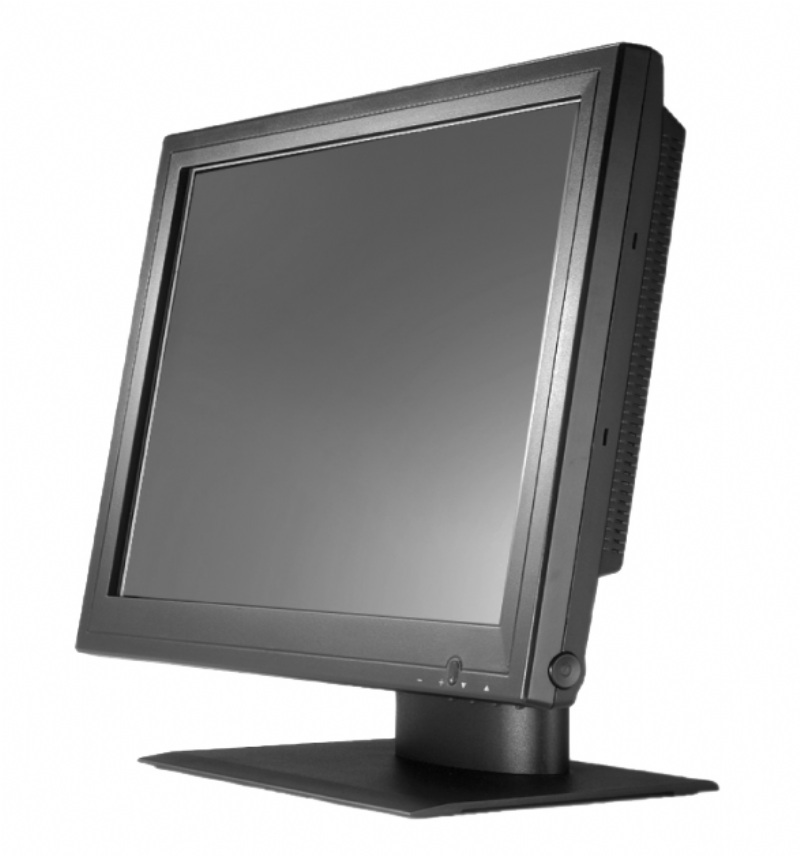

CP17BH Series c




PCoIP:	Integrated



Bezel Color:	Black, White or Beige



LCD Display:	17” TFT active matrix panel



Max. Resolution:	SXGA 1280 x 1024



Contrast Ratio:	1000:1 (Typ.)



Brightness:	350 cd/m² (Typ.)



Touch Screen:	Options: 5-wire resistive, SAW, capacitive or projected capacitive touch



Touch Panel:	RS-232 x1 or USB A type x1 or Combo



Aspect Ratio:	4:3



Response Time:	5 ms (Typ.)



Viewing Angle:	170°(H) x 160°(V) (Typ.)



Base:	Tilt down : -5° , Tilt up : +90°



Input Signals:	D-Sub15 pin ( VGA ) x1



Audio System:	Headphone Out x1 Microphone In x1 Line In x1



Power Adaptor:	Universal Power Adapter Input AC 100~240V, 50~60 Hz Output DC 12V / TBD A, TBD W



Dimensions (WxHxD):	392.0 x 381.5 x 180.0 mm



Certifications:	CE, FCC, UL, C-UL

- The GVision P17BH-AP utilizes a PCoIP® (PC-over-IP) Chipset and VMware to deliver a powerful and secure virtual computing solution.

- High contrast color TFT LCD display support resolution up to 1024 x 768. Compatible with IBM, VGA, VESA standards.

- Support DDC 1/2B for Plug & Play compatibility.

- Advanced OSD control for picture quality adjustment.

- Auto detects multi-signals input.

- Optional front panel sealed to resist dust and splashes.

- AG / AR tempered glass : IP54

- Resistive / Capacitive Touch Panel : IP54

- VESA mounting. RoHS Compliance.

- Use PCoIP client processor.

- Stateless zero client, no data storage.

- Enable server-based remote imaging.

- WAN optimizations built into the protocol.

- Anti-Glare / Anti-Reflective tempered glass (MOQ) .

- Capacitive Touch Solution (MOQ) .

- Choice of black , beige or white housing .( Project Base )

- Cable Management Stand .

- USB 2.0 Hub .

To Order:
