        Home > Desktop Touch Displays > MA17BH Series

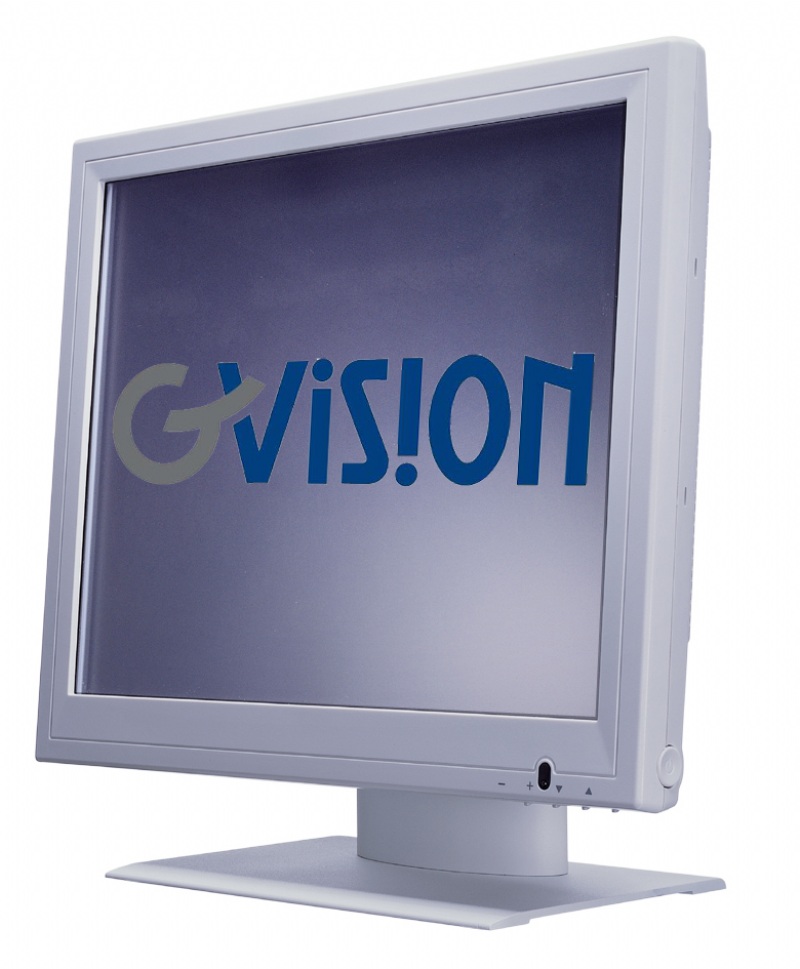

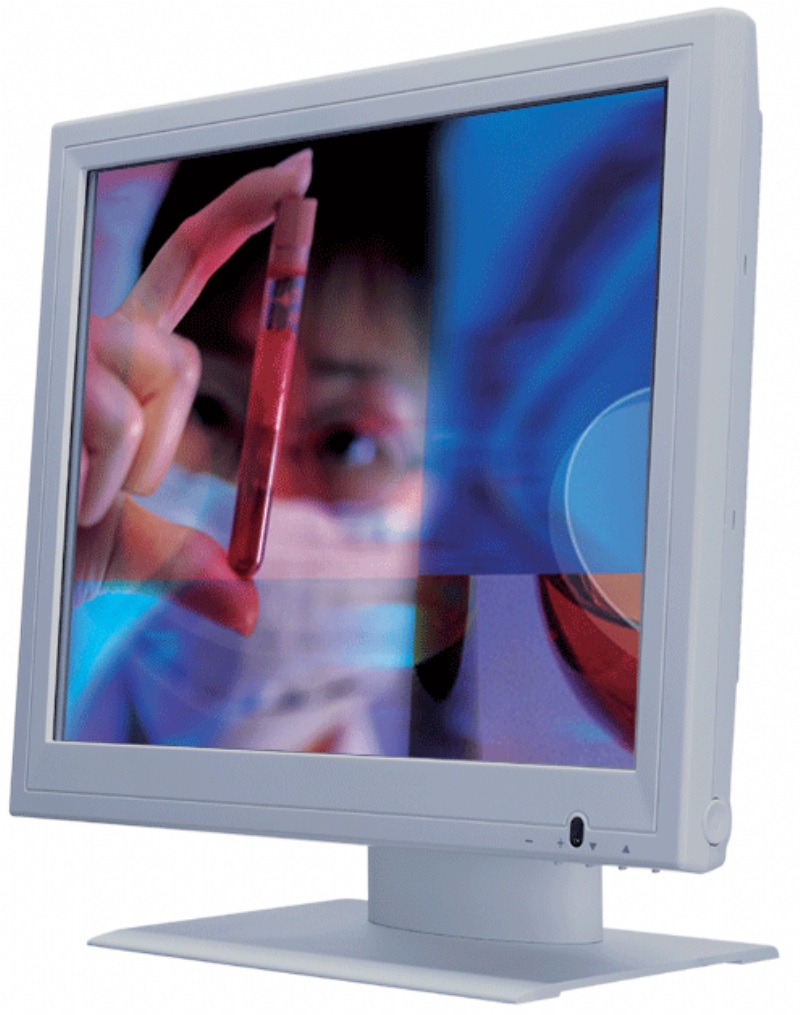

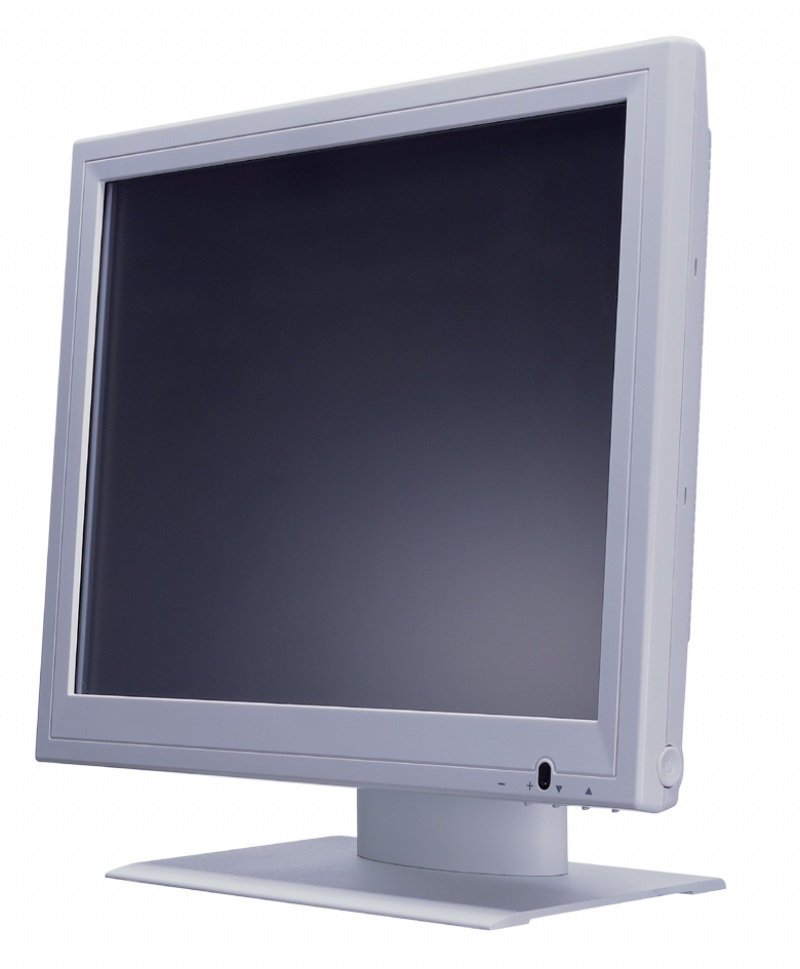

MA17BH Series
Description:
17" Medical Touchscreen
The medically certified 17 1.3 Mega-pixel LCD display offers a fashionable design with a slim bezel. The MA17BH has a medical grade power adapter, all-aluminum base and UL 60601-1 certification.
Download PDF Specifications



Configuration

MA17BH Series c
PCoIP:  Optional feature
Bezel Color:  White
LCD Display:  17
Max. Resolution:  SXGA 1280 x 1024
Contrast Ratio:  1000:1 (Typ.) w/o sensor or glass
Brightness:  350 cd/m² (Typ.) w/o sensor or glass
Touch Screen:  Resistive (standard)
Touch Panel:  RS-232 x1 or USB A type x1 or Combo
Aspect Ratio:  4:3
Response Time:  8 ms
Viewing Angle:  170°(H) x 160°(V) (Typ.) w/o sensor or glass
Base:  Tilt down : -5° , Tilt up : +90°
Input Signals:  Analog, Digital
Audio System:  1W / per channel driver
Power Adaptor:  DC-in Power Universal Power Adapter Input AC 100~240V, 50~60 Hz Output DC 12V / 4A, 48W AC-in Universal 100~240V, 50~60 Hz 1.5A AC input
Dimensions (WxHxD):  392.0 x 381.5 x 180.0 mm
Certifications:  CE, FCC, ROHS/WEEE, ANSI/AMMI UL60601-1,TUV EN60601-1



Features

 * Fashionable Design with Slim bezel

* CE, FCC, TUV EN 60601-1, UL 60601-1 medical

certification available.

* IPX1 Spilling proof Compliant

* High contrast color TFT LCD display support resolution

up to SXGA 1280x1024.

* Built-in Medical grade power adapter.

* Advanced OSD control for picture quality adjustment.

* Stable Aluminum Stand Base with Angle

Adjustment -5o up to 90o

* Multi-Signal Inprts : VGA. DVI, Composite Video,

S-Video (Auto DetectionOF Input Signals).

* NTSC/PAL,Video Systmes compatible

* Support DDC1/2B for Plug & Play Compatibility.



* High contrast color TFT LCD display supports resolution up to 1280 x 1024

* Compatible with VGA, IBM and VESA signal standards

   (resolution/timing auto-detected)

* Compatible with non-standard signals (on request)

* Supports DDC 1/2B for Plug & Play compatibility

* Advanced OSD control for picture quality adjustment

* VESA standard mounting

* RoHS Compliance









Optional Accesories

 * Resistive /Capacitive Touch Aenso

* Tempered Protection goass

* Composite Video, S-Video, R /L RCA Audio Input

* Anti-Glare / Anti-Reflective tempered glass

* Sunlight Readable

* IP54 waterproof & dustproof sealed front bezel

* Touch sensor technologies: resistive, surface capacitive

* Video Signal input

    - Signal Connector: RCA / S-Video

    - NTSC / PAL / SECAM video















Order Information

* MA17BH-AA:          VGA
* MA17BH-AB:          VGA, DVI-D
* MA17BH-AE:            VGA, DVI-D, Video, S-Video, Audio,
* MA17BH-AB-100G  White; No touch; GVision Brand
* MA17BH-AB-159G  White; Gtouch Channel; Resistive USB + Serial
* MA17BH-AE-1000   White;  No touch; Non-branded
