        Home > Desktop Touch Displays > MA19BH Series

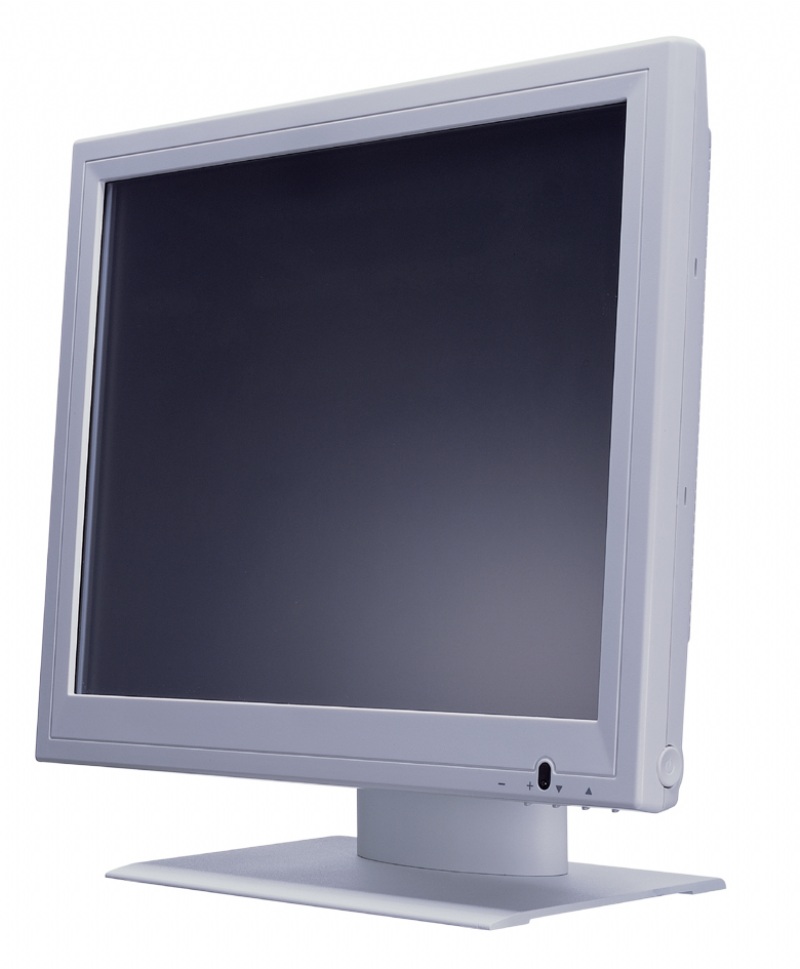

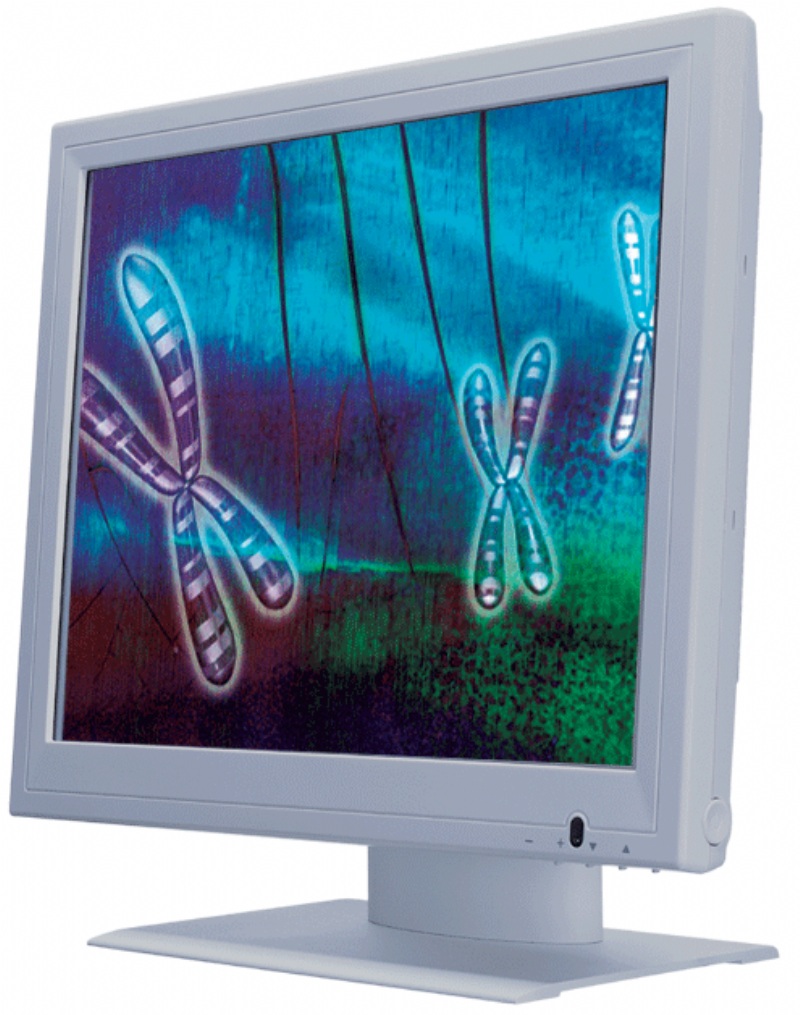

MA19BH Series
Description:
19" Medical Touchscreen
The medically certified 19 1.3 Mega-pixel wide-view angle LCD display offers a fashionable design with a slim bezel. The MA19BH has a medical grade power adapter, all-aluminum base and UL 60601-1 certification.
Download PDF Specifications



Configuration

MA19BH Series c
PCoIP:  Optional feature
Bezel Color:  White
LCD Display:  19
Max. Resolution:  SXGA 1280 x 1024
Contrast Ratio:  1000:1 (Typ.) w/o sensor or glass
Brightness:  CCFL 350 nits / 400 nits LED w/o sensor or glass
Touch Screen:  Resistive (standard)
Touch Panel:  RS-232 x1 or USB A type x1 or Combo
Aspect Ratio:  4:3
Response Time:  5 ms (Typ.)
Viewing Angle:  170°(H) x 160°(V) (Typ.) w/o sensor or glass
Base:  Tilt down : -5° , Tilt up : +90°
Input Signals:  Analog Digital D-Sub15 pin ( VGA ) DVI-D
Audio System:  1W / per channel driver
Power Adaptor:  DC-in Power Universal Power Adapter Input AC 100~240V, 50~60 Hz Output DC 12V / 4A, 48W AC-in Universal 100~240V, 50~60 Hz 1.5A AC input
Dimensions (WxHxD):  438.0 x 417.5 x 180.0 mm
Certifications:  CE, FCC, UL60601-1,TUV EN60601-1, EMC CE / FCC Certification Safety UL / c-UL / TUV (AC type) / CB Other RoHS / WEEE



Features

 * Wide view angle TFT LCD technology

* IPX1 Spilling proof Compliant

* CE, FCC, TUV EN 60601-1, UL 60601-1 medical certification available

* Fashionable Design with Slim bezel

* High contrast color TFT LCD display supports resolution up to 1280 x 1024

* Built-in Medical grade power adapter

* Advanced OSD control for picture quality adjustment

* Optional Height, Swivel, Tilt, and Rotation adjustable Stand

* Compatible with VGA, IBM and VESA signal standards (resolution/timing auto-detected)

* Compatible with non-standard signals (on request)

* NTSC/PAL,Video Systmes Compatible

* Supports DDC 1/2B for Plug & Play compatibility

* VESA standard mounting

* RoHS Compliance






Optional Accesories

 * 3M Capacitive Touch Sensor

* ELO/3M 5 wire Resistive Touch Sensor available

* Anti-Glare Tempered Protection glass

* 1 Watts internal Speakers

* Height Adjustable Stand Base

* Anti-Glare / Anti-Reflective tempered glass•

* Sunlight Readable•

* IP54 waterproof & dustproof sealed front bezel

* Touch sensor technologies: resistive, surface capacitive

* Video Signal input

    - Signal Connector: RCA / S-Video

    - NTSC / PAL / SECAM video



Order Information

* MA19BH-AA VGA

* MA19BH-AB VGA, DVI-D

* MA19BH-AE VGA, DVI-D, Video, S-Video, Audio

* MA19BH-GB VGA, DVI-D, Hight Adjustable Stand

* MA19BH-GE VGA, DVI-D, Video, S-Video, Audio, Height Adjustable Stand
